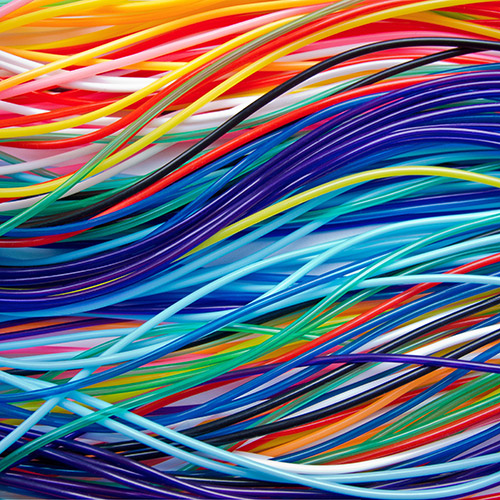

Custom Wire & Cable
Micro-Tek Corporation is a custom manufacturer of stranded, braided, and insulated wire and cables, all to very tight tolerances. Their willingness to take on virtually any project, such as aerospace, military, medical, audio, or computer customer requests has set them apart since they began operations in 1965. Micro-Tek manufactures lead/hook-up; medical grade flat, medical grade insulated round, and uninsulated wire as well as micro coaxial and multi-conductor cables in AWGs from 18 to 50. Micro-Tek makes its custom wire and cables from bare copper, silver and nickel plated copper, and copper based alloys. They also work with stainless steel (304 and 316L) and resistance wire; specialty/precious metals are manufactured on toll. A wide variety of DuPont Fluoropolymer resin coatings are also available, including Teflon® PTFE (minimum insulation thickness: .0035") as well as FEP, PFA, and Tefzel® ETFE (minimum insulation thickness, each: .003"). Micro-Tek, which can also fulfill your ferrous and non-ferrous flat wire and Teflon® PTFE tubing and washer requirements is equipped to provide drawing, stranding, tape wrapping, etching, cutting + stripping, and tinning services upon request. Finished wire product tolerances are ±.001" for insulated wire and ±.0002" for flat wire. Micro-Tek custom wire and cables can be manufactured on a contractual, as needed, or just-in-time basis. The expertise found in their specialty production shop enables them to easily complete custom and made to order jobs, as well as more traditional production volumes of virtually any size, all with typical lead times of only three to four weeks.
ISO 9001:2008 Certified, Micro-Tek manufactures to Mil-Specs 16878/4, 16878/6, 16878/11, and 16878/13, plus NEMA HP3 standards. 2D CAD drawings in PDF are acceptable.
Small, nimble, and customer oriented, Micro-Tek Corporation is anxious to discuss your custom wire and cable requirements. Contact them for further information.
Specialty Products
Custom Wire and Cables Capabilities
- General Capabilities
- As Needed
Contract
Just-In-Time
On-Site Production
- Products
-
- Lead / Hook-up Wire
Micro Coaxial Cables
Multi-Conductor Cables
Medical Grade Flat Wire - Medical Grade Insulated Round Wire
Teflon® PTFE Tubing
Uninsulated Wire
- Lead / Hook-up Wire
- Wire Material
-
- Silver Plated Copper
Bare Copper
Copper Based Alloys
Stainless Steel (304 and 316L) - Resistance Wire
Nickel Plated Copper
Specialty/Precious Metals on Toll
- Silver Plated Copper
- Insulation Material
- DuPont Fluoropolymer Resin
- Teflon® PTFE
- FEP
- PFA
- Tefzel® ETFE
- AWG
- 18 AWG to 50 AWG
- Insulated Wire Diameter
-
- Min - .010"
- Max - .200"
- Insulation Thickness
- PTFE - Min - .0035"
FEP/PFA/ETFE - Min - .003"
- Additional Capabilities
-
- Flat Wire (Ferrous and Non-ferrous)
Drawing
Stranding
PTFE Extruded Strips
Braiding/Shield - Tape Wrapping
Etching
Cutting/Stripping/Tinning
Tubing / Teflon® PTFE Washers
- Flat Wire (Ferrous and Non-ferrous)
- Finished Wire Product Tolerance (+/-)
- Outer diameter held to ±.001" for insulated wire and for flat wire ±.0002"
- Production Volume
-
- Specialty Production Shop
Custom / Made to Order
Low Volume
Small Run - High Volume
Large Run
Long Run
Large Scale Production Volume Run
- Specialty Production Shop
- Typical Lead Time
- 3 to 4 weeks
Additional Information
- Industry Focus
-
- Aerospace
Military / Defense
Medical
Audio - Computer
Automotive
Electronics
- Aerospace
- Wire Form Products
- Stranded
Braiding
Insulation
- Industry Standards
-
ISO 9001:2008 certified
International Organization for Standardization
Mil-Spec- Military Specifications
- MIL-W-16878/6 (Type ET)
- MIL-W-16878/4 (Type E)
- MIL-W-16878/11 (Type K)
- MIL-W-16878/13 (Type KT)
- MIL-W-22759/12
- File Format
- PDF- Mostly 2D drawings
Teflon® is a registered trademark of DuPont and used under license by Micro-Tek.
